Materials · Elastomers

Vapor smoothing TPU and TPE parts.

TPU vapor smoothing reflows the rough, porous skin of a 3D printed elastomer part into a smooth, sealed surface that wipes clean. On BASF Ultrasint TPU01 printed by HP MJF, AMT measured surface roughness going from 13.42 → 1.18 µm. PostPro systems smooth TPU from MJF, SLS and FDM, and TPE on the SF50 and SF100.

No cost to evaluate · Parts returned · Typical turnaround 2–3 weeks

General Motors SUV rear spoiler assembly on a display stand, with its 3D printed TPU closeout seals
Spoiler closeout seals in BASF Ultrasint TPU01 (General Motors). Case study
Applications
Seals, bellows, lattices, orthoses
Processes
MJF · SLS · FDM
Finishing agent
FA5802 (Pure), FA326
Systems
SFX · SF2X · SF50 · SF100; TPE on the SF50 and SF100

Why smooth TPU

Flexible parts need a closed skin.

TPU lattices, seals, bellows and grips are printed for flexibility and comfort. As printed, their surface is rough and open, so it traps dirt, absorbs liquids and feels coarse.

  1. Sealed lattices and seals

    Vapor reaches every strut of a lattice and every fold of a bellows, so the whole surface closes, including the faces no tool can reach.

  2. Smoother by an order of magnitude

    Ultrasint TPU01 went from 13.42 → 1.18 µm in surface roughness after PostPro vapor smoothing.

  3. Cleanable, comfortable

    A closed, smooth skin wipes clean and feels better against skin, for grips, straps and orthoses.

  4. Proven at volume

    GM used vapor-smoothed TPU01 spoiler closeout seals in production: 60,000 parts, needed quickly to avoid delaying 30,000 vehicles.

Proof

Sealed against water.

The water test below uses two TPU bellows printed together: the drop beads on the vapor-smoothed part and soaks into the as-printed one.

  • Surface

    13.42 → 1.18 µm

    Surface roughness, as printed to vapor smoothed BASF Ultrasint TPU01 · HP MJF

  • Production

    60,000 parts, needed quickly to avoid delaying 30,000 vehicles

    Spoiler closeout seals HP MJF, BASF Ultrasint TPU01 → vapor smoothed

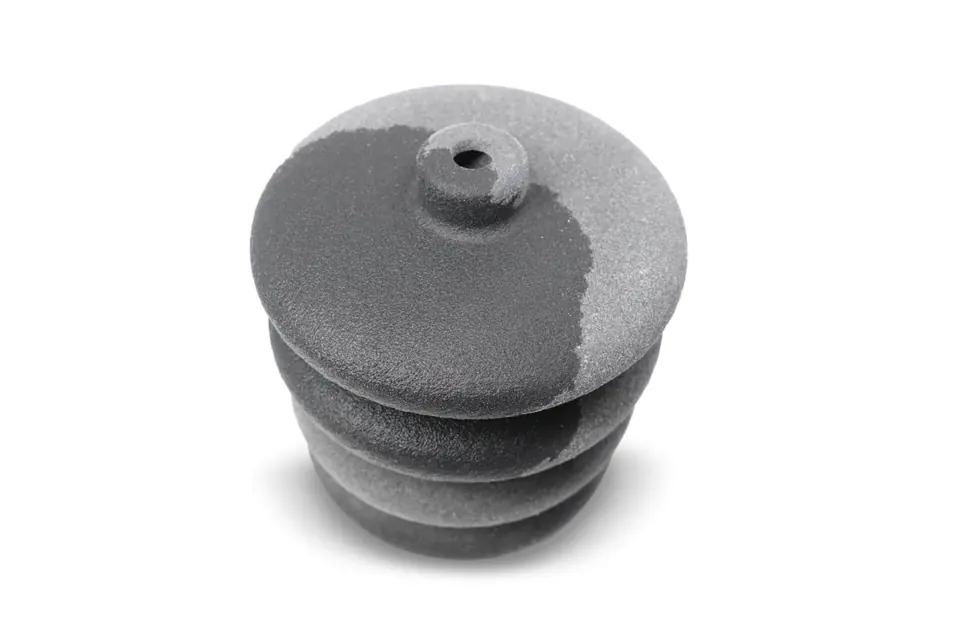

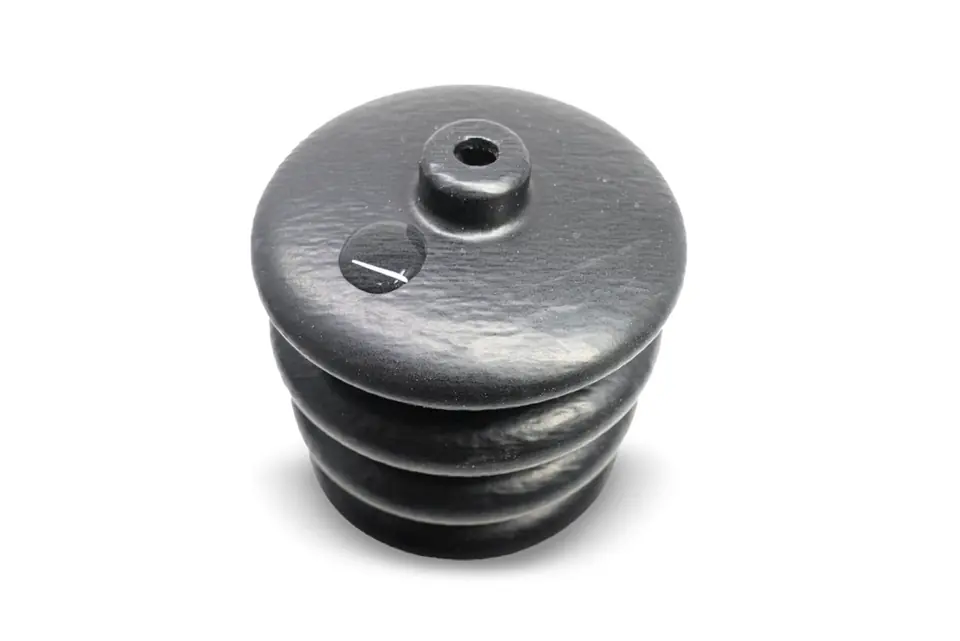

Water beads on the vapor-smoothed bellows (left) and soaks into the as-printed one.

Agents and systems

Which agent, which machine.

Forward AM TPU runs with FA5802 (Pure) or FA326; Lubrizol TPU with Pure. Every system lists TPU; TPE is listed on the SF50 and SF100.

TPU by printing process and finishing agent
ProcessMaterialFA5802 (Pure)FA326FA9202
MJFForward AM TPUListedListedNot listed
MJFLubrizol TPUListedNot listedNot listed

Listed by AMT— Not listedFA5802 (Pure) runs in every PostPro system; FA326 (High performance) on the SF50 and SF100; FA9202 for Polypropylene (PP).

TPU and TPE by PostPro system
SystemTPUTPE
PostPro SFXListedNot compatible
PostPro SF2XListedNot compatible
PostPro SF50ListedListed
PostPro SF100ListedListed

Listed Not compatibleEach PostPro product page lists its materials.

Material not listed for your system? Send us a part and we will test it. Test your parts, free

In production

TPU parts in service.

Published stories on vapor-smoothed elastomer parts.

  • GMHP MJF · Ultrasint TPU01

    Spoiler closeout seals

    60,000 parts, needed quickly to avoid delaying 30,000 vehicles

  • OrthobrokerHP MJF · PA11 and TPU

    Orthoses for daily wear

    Reliable, consistent quality for both custom and serial production

Questions

TPU vapor smoothing: questions.

Short answers. Anything else, ask an engineer.

Can TPU be vapor smoothed?

Yes. TPU from MJF and SLS (and extrusion with FA326) is on AMT’s material lists. On Ultrasint TPU01 printed by HP MJF, surface roughness went from 13.42 → 1.18 µm.

Does vapor smoothing seal TPU lattices?

The vapor reaches every exposed strut and surface of a lattice, so the whole part is finished at once, including faces a tool cannot reach. Very fine or deep lattices are worth a test part first.

Which consumable is used for TPU?

Forward AM TPU runs with Pure or FA326, and Lubrizol TPU with Pure.

Which PostPro systems handle TPU and TPE?

All four PostPro systems process TPU. TPE runs on the industrial SF50 and SF100, not on the desktop SFX and SF2X.

Next step

See the price. Run the numbers. Hold the part.

Starting prices are public and the cost-per-part math is yours to check, with no email needed for either. The free benchmark puts your own parts, vapor smoothed, in your hands.

  1. 01Quote

    Build your quote

    Pick a system and its options, and send AMT an itemized quotation request. Each system shows its starting price.

    Build your quote

  2. 02ROI

    Calculate your ROI

    Compare your cost per part with manual finishing, using your own labor rate and volumes. Every assumption is editable.

    Calculate ROI

  3. 03Benchmark

    Test your parts, free

    Ship us your parts with a prepaid label. We vapor smooth them and send them back with before-and-after photos and a benchmark report.

    Test your parts, free

    No cost to evaluate · Parts returned · Typical turnaround 2–3 weeks

Prices: starting prices, excluding tax and shipping; everything else is priced in your quotation.

Not sure which system? Help me choose
